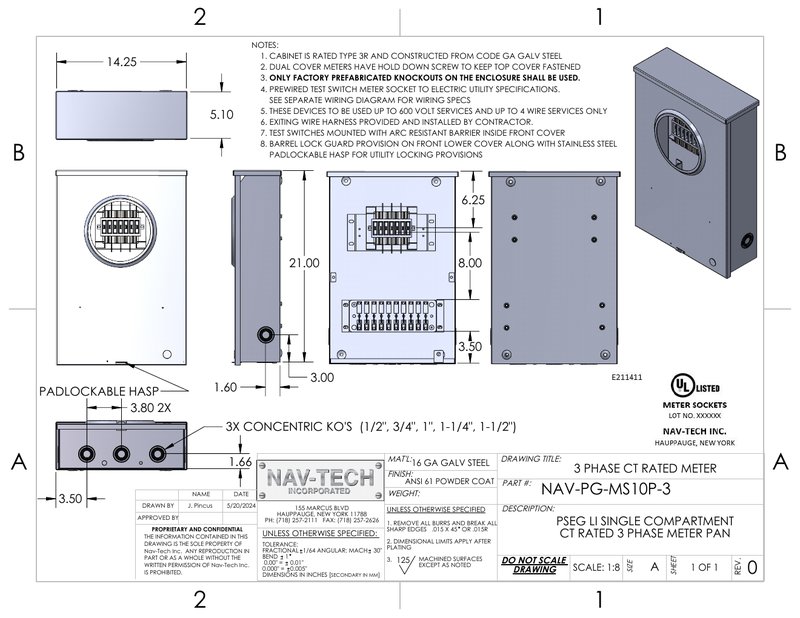

NAV-PG-MS10P-3
NAV-PG-MS10P-3 meter socket for utility metering applications. PSEG Long Island-approved NEMA 3R
Technical Specifications
Approved Utilities
Overview
The NAV-PG-MS10P-3 (SKU: NAV-PG-MS10P-3) is a professional B2B Meters device, custom manufactured by Nav-Tech. Rated for 600V max and up to 30A, it represents a highly reliable, utility-compliant option for modern electrical construction engineering. Built in Hauppauge, NY, this unit ensures compliance with serving utility specifications and regional electrical inspector manuals. NAV-PG-MS10P-3 meter socket for utility metering applications. PSEG Long Island-approved NEMA 3R
Features
- Environmental Rating: Designed and certified to meet high NEMA 3R environmental guidelines.
- Electrical Integrity: Built to operate reliably up to 600V max circuits at maximum amperage capacity of 30A.
- Approved Integration: Pre-approved layouts for PSEG LI electrical grids.
- Commercial Safety: Lockable handles, safety viewing tabs, and clear terminal arrangements.
Benefits
- Precision Engineering: Designed for commercial self-contained and pre-wired multi-position metering applications.
- Bypass Control: Features lever bypass or test switch bypass systems to allow continuous service during meter testing.
- Robust Construction: Enclosures are built with durable galvanized steel to prevent environmental ingress and physical tampering.
- Wide Application: Approved by major utility agencies for residential developments, offices, and industrial service entrances.
Applications
Self-contained and pre-wired meter socket applications for utility metering.
Industries
- Electrical Construction Contracting: Speeds up approvals and matches exact job drawings.
- Civil Utilities: Standard structural boxes that match municipal service codes.
- Commercial Real Estate: Reliable, padlockable service meter panels and pull boxes.
- Industrial Engineering: Heavy equipment power disconnect setups.
FAQ
Is the Nav-Tech model NAV-PG-MS10P-3 approved by utility companies?
Yes, this unit is approved by PSEG LI. If your project is in a territory served by a different utility group, please contact our Hauppauge engineering desk to request a custom specification review and compliance submittal drawings.
What environmental protection does the NEMA 3R rating offer?
A NEMA 3R enclosure is built to protect electrical connections. Type 3R ratings provide security against rain, snow, and windblown dust, making them suitable for outdoor commercial installations. Type 1 is designed for clean indoor service entries.
How do I request CAD submittals and DWG layout drawings for the NAV-PG-MS10P-3?
Nav-Tech provides dimensional drawings and submittals for all utility-grade enclosures. You can download the PDF spec sheet directly on this page or use the Contact Form to request engineering DWG/DXF files for your building submittal package.
Compliance Summary
- UL Listed Certification
- NEMA Rated Enclosures
- Utility Standard Approved
- Standard Construction
Specifications
| Voltage Rating | 600V max |
| Amperage Rating | 30A |
| Enclosure Protection | NEMA 3R |
| Product Category | Meters |
| Approved Utilities | PSEG LI |
| UL Listing Status | UL 50 / UL 891 Listed |
| Construction Material | Galvanized Steel / Aluminum / Copper (as specified) |
Documents & Drawings
Technical Specifications Sheet (PDF)
Detailed dimension drawings, wiring diagrams, and layout options.
CAD Submittal Request
Request DWG/DXF dimensional files for project engineering approval.
Nav-Tech Product Catalog
Complete portfolio of service entrance and metering equipment.
